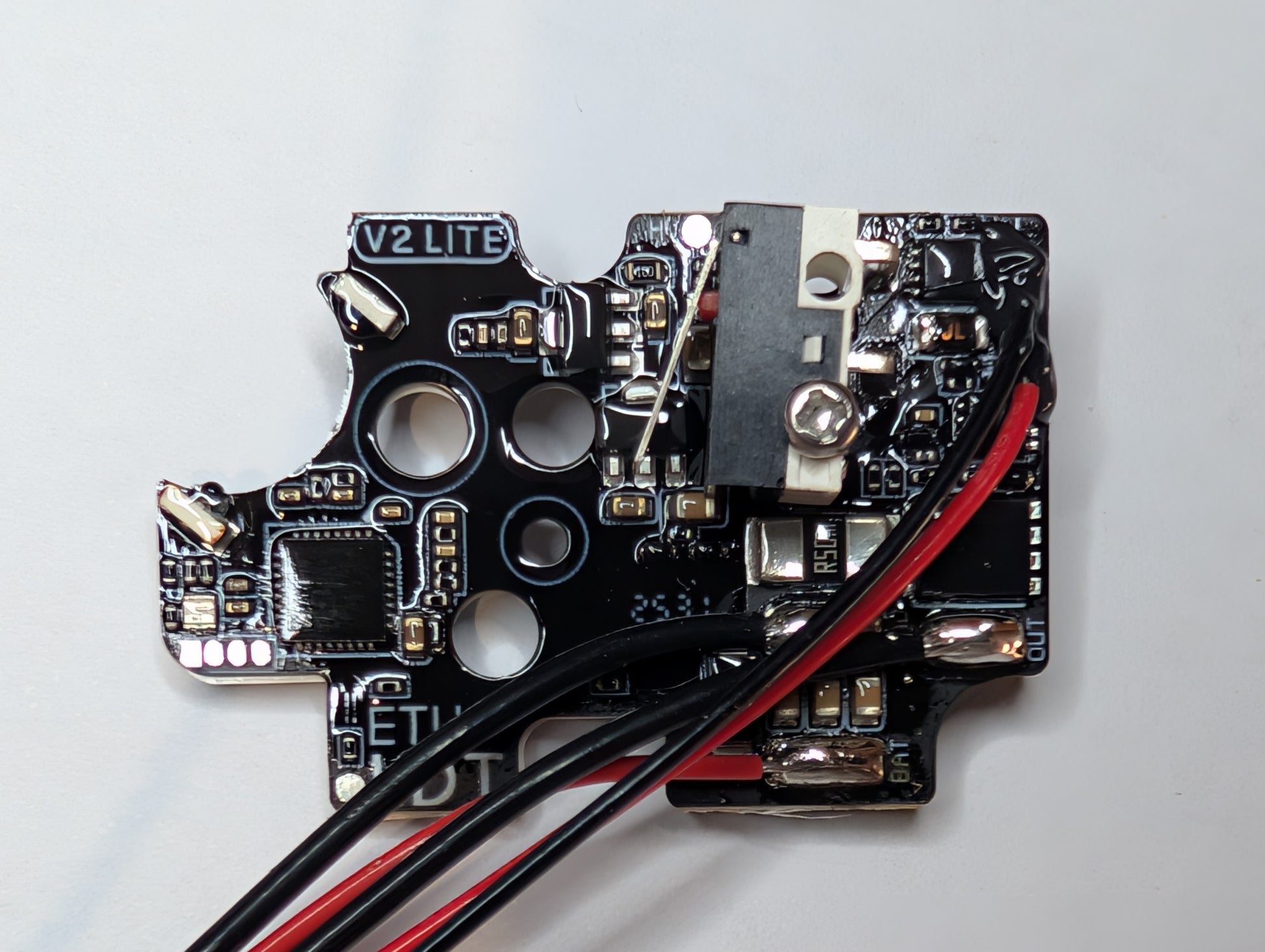

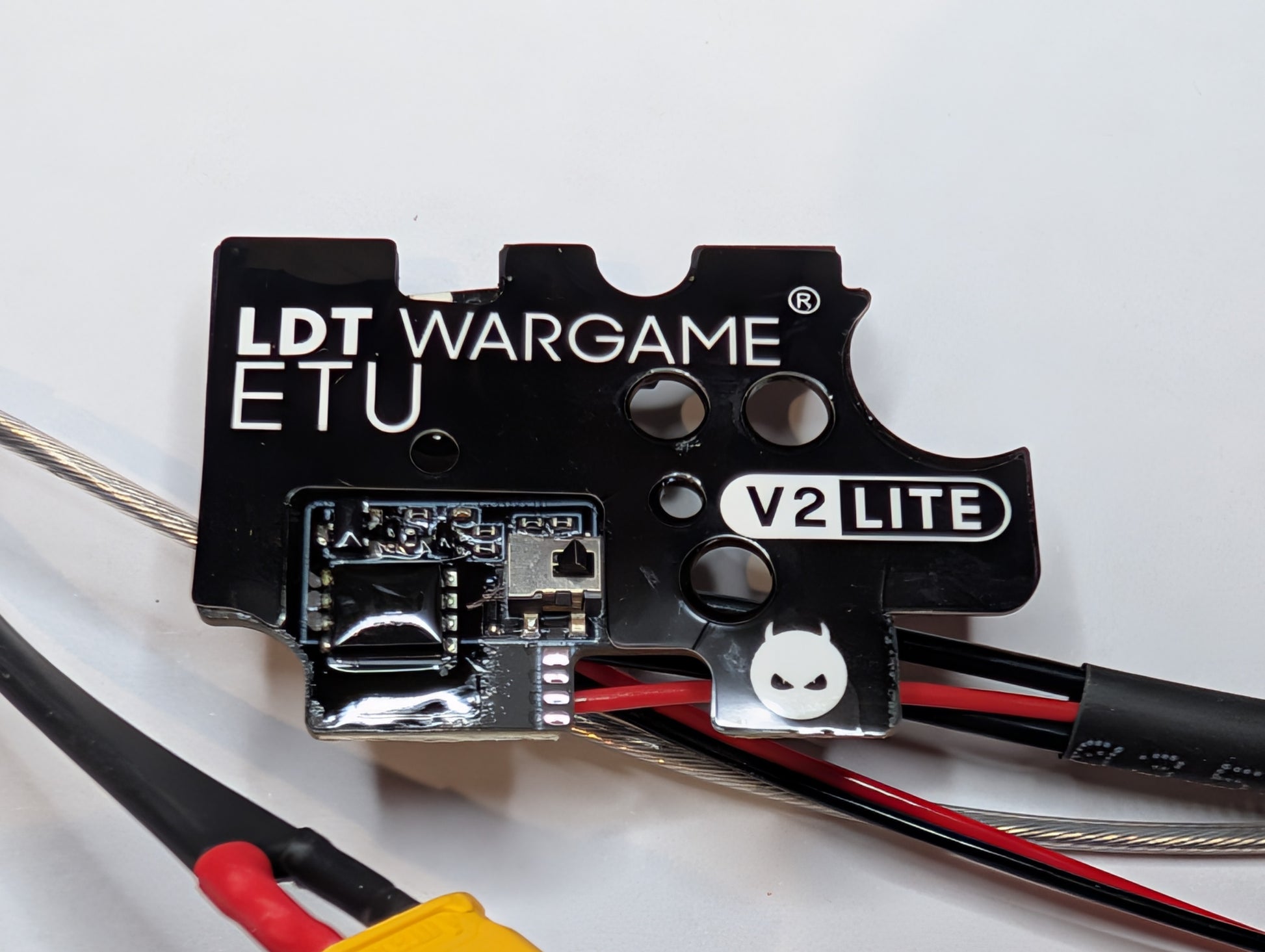

LDT ETU V2 LITE (Mosfet) - Rear wired M4 Type

Simple, effective and durable! the LDT EUT V2 Lite is a fantatsic entry level ETU.
Optical sensor for the sector gear, nice durable responsive trigger switch and easy to set up for the selector with a switch.

I has adaptive learning to recognize brushed or brushless motors, and intelligently adjust braking force to suit, to ensure a consistent piston position after cycling.

It features programmable fire modes, and mag prime off or durations up to 1.5 seconds.

The unit is conformal coated to resist against moisture and lubricants causing electrical issues. Also features Teflon coated silver-plated wiring.

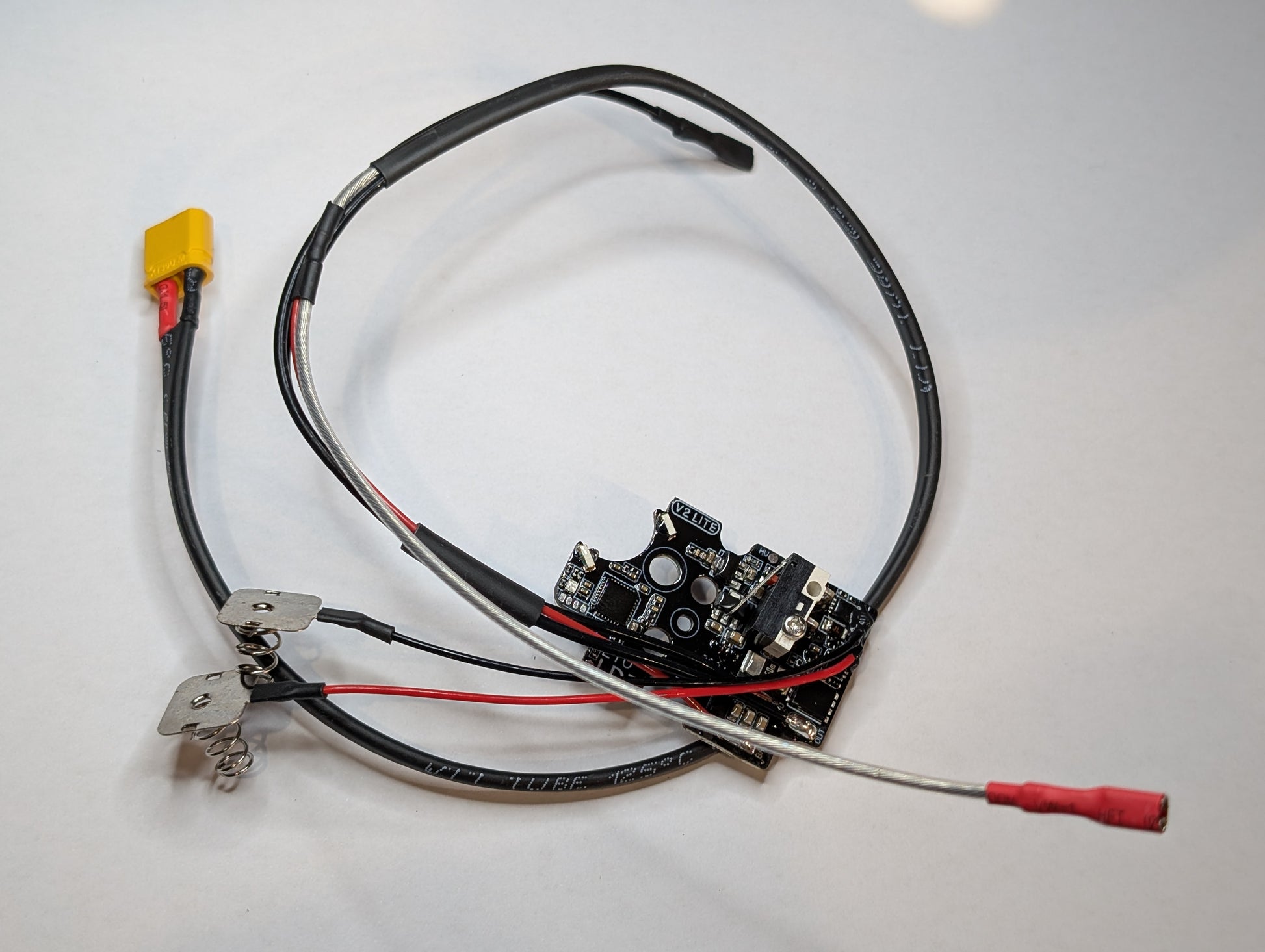

• LDT ETU V2 Lite
• XT-30 battery connection
• M4 magazine terminals
• Mounting screw and plastic washer
• Motor Terminals

Warnings from the ETU

• 2 beeps / 2 blue flashes: Battery low, needs charging or replacement.
• 3 beeps / 3 blue flashes: Mainboard temperature high, needs cooling down.
• 5 beeps / 5 blue flashes: Gear not detected/stuck or motor installation issue.
• 1 beep / 1 blue flash: Short circuit in the feeding mechanism.

Please note: If you are using a metal selector swivel, such as the A5 and PDW dual-sided selector, please apply a layer of electrical tape to the part that comes into contact with the fire control selector for insulation.
