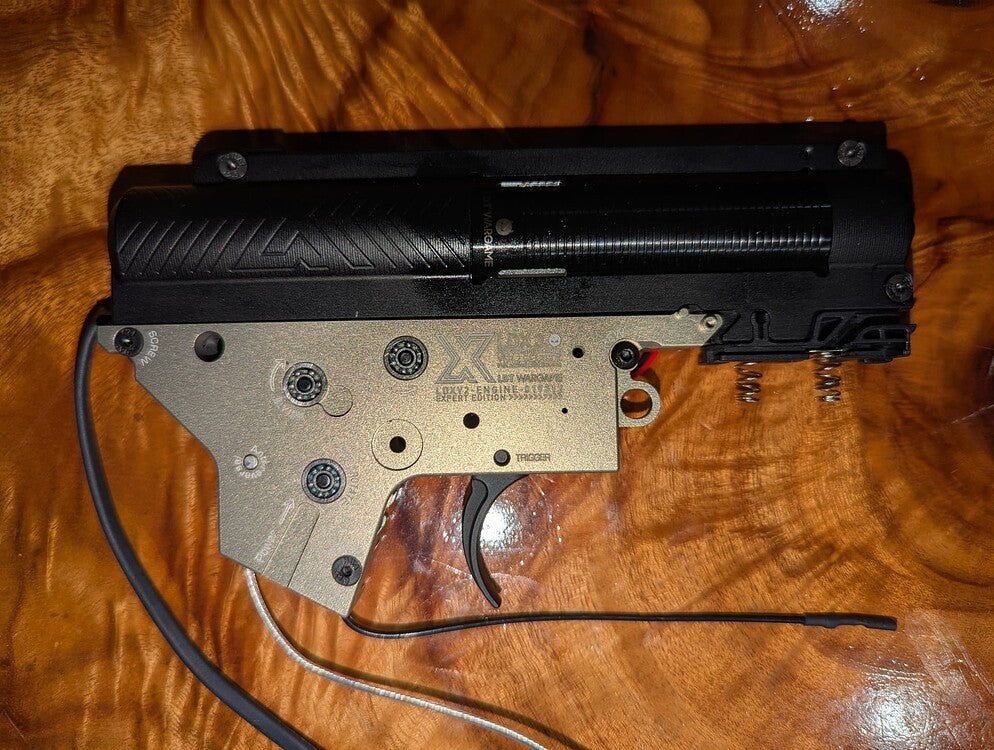

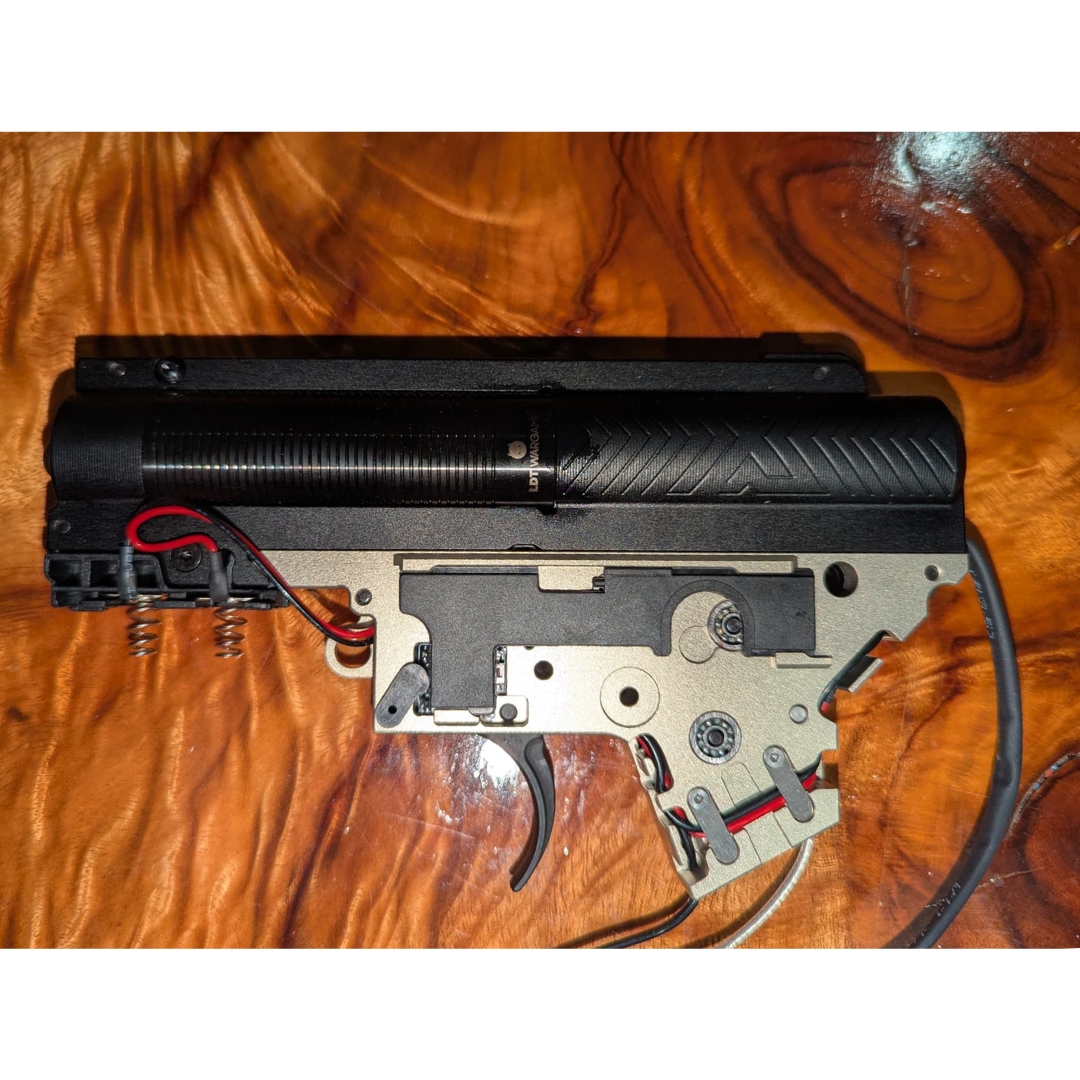

LDT LDX GEN3.0 CNC Assembled V2 Gearbox (30 RPS)

The latest GEN 3.0 LDT LDX CNC Expert gearbox is ready to go for your next build! Pre-built by LDT with 18:1 CNC LDT gears and LDT Lite ETU.

These can support 30 rounds per second when paired with a motor matched to do so!

These are fantastic for converting blasters with troublesome gearboxes, or upgrading from a nylon gearbox.

Split design makes servicing the compression section and changing springs much easier.

These are a CNC 7075 aluminium

Features a 4 prong bearing spring retainer to keep the spring from diving and bending.

9mm bearings for smooth gear operation and longevity.

The new terminal block has locations for M4 and MP5 terminals, and features a channel for routing front wiring.

Includes:

• Gearbox. Complete and assembled
• T-piece and barrel spring

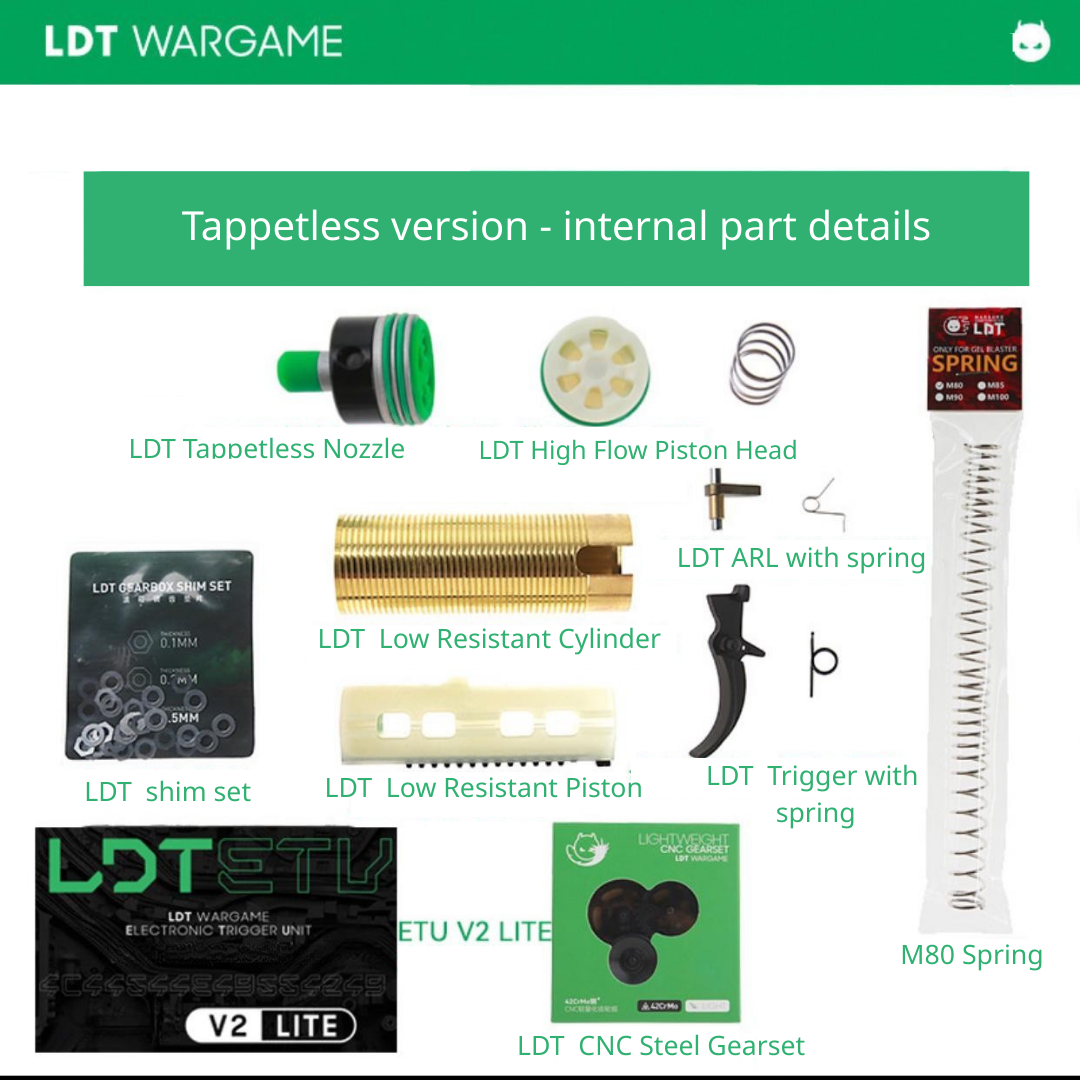

Features

• CNC 7075 aluminium shell
• CNC 18:1 LDT gears (short stroked 2 teeth)
• LDT V2 Lite ETU (mosfet)
• Full metal rack piston
• 4 prong bearing spring retainer
• LDT tappetless cylinder head
• XT30 battery connection

Please note that the MP5K version has a 60% cylinder, bolt release has been ground off by factory, MP5 mag terminals, front wired, and the selector plate and trigger is M4 spec. If used on an LDT MP5 (non K model) please use MP5 trigger and selector plate! Could be used in an M4/416 front wired if the magazine terminals were changed to M4 style.
